产品中心

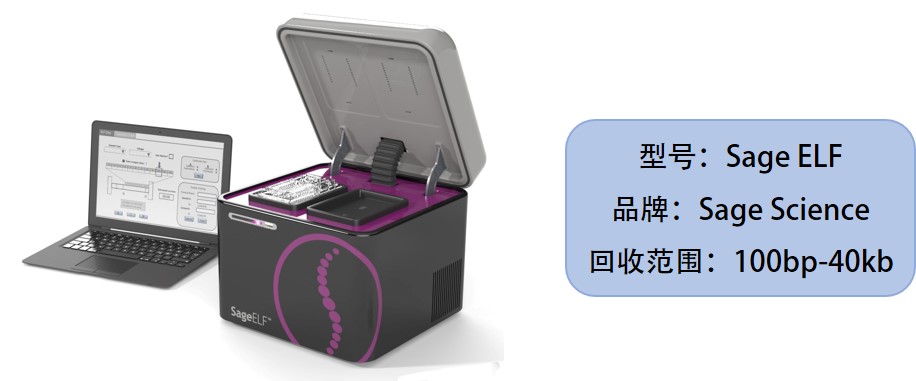

Sage ELF全自动DNA片段连续回收仪



功能用途:可将DNA样品按分子量大小精确、多道回收

(1)支持三代测序的高精度HiFi文库制备及转录组全长文库制备

(2)支持二代测序的各种文库制备

(3)可对蛋白样本进行回收

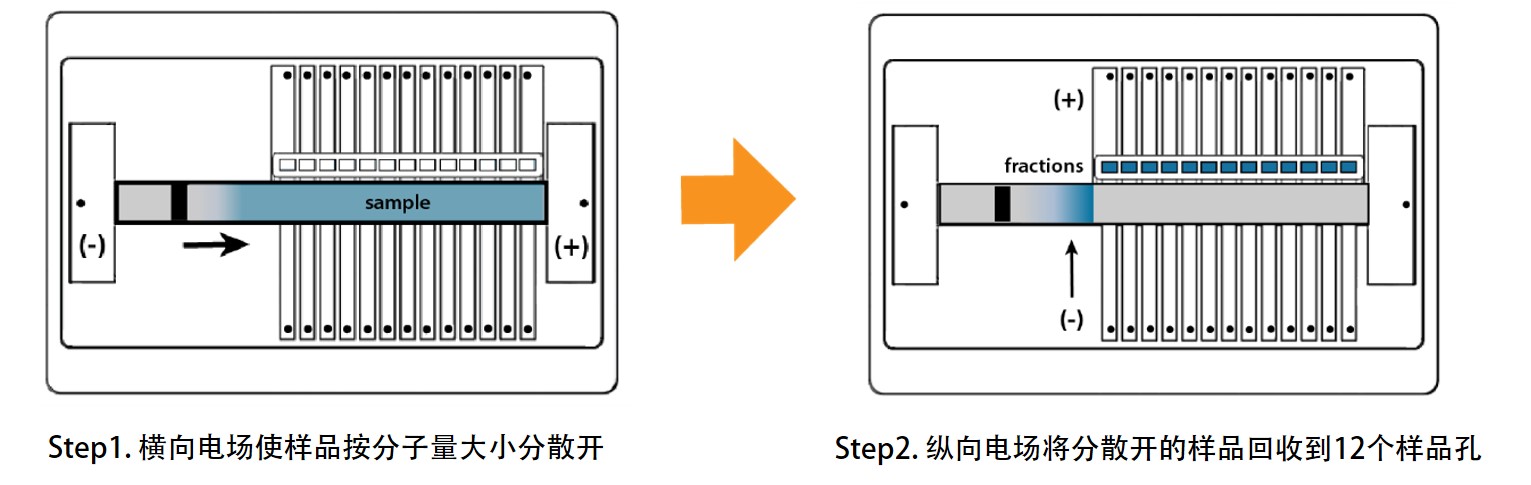

回收原理:

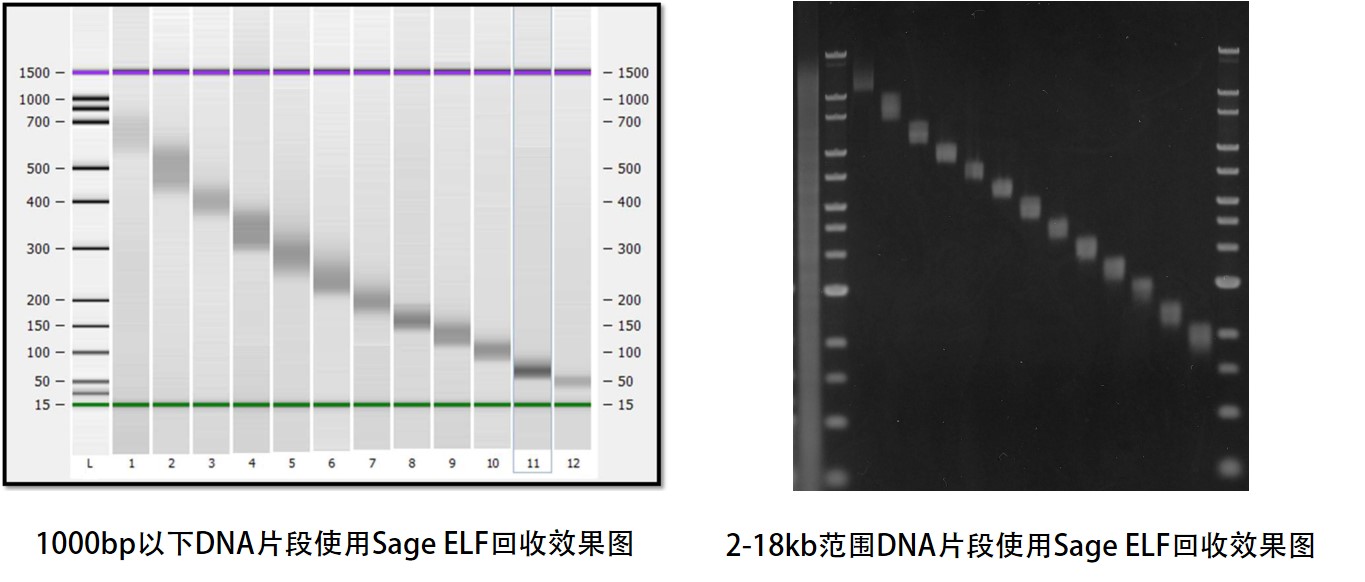

回收结果:



技术规格:

1.自动化:仪器自动对程序设置的片段范围进行回收

2.回收特点:对同一个样品连续12个组份回收,每个组份可单独建库用于下游实验

3.回收精度高:可有效去除引物二聚体、接头二聚体等小分子片段及大分子条带

4.上样量:5ug DNA,也可对低至ng级的样本进行回收

5.蛋白回收:可对蛋白样本进行回收,范围:10-300kDa

6.支持illumina、Life、Pacbio、Nanopore等主流二代、三代测序平台



发表文献

1. Proteomic analysis of sialoliths from calcified, lipid and mixed groups as a source of potential biomarkers of deposit formation in the salivary glands.  Clinical Proteomics    (2023)

2. An intronic transposon insertion associates with a trans-species color polymorphism in Midas cichlid fishes.

Nature Communications   (2022)

3. Generating lineage-resolved, complete metagenome-assembled genomes from complex microbial communities.

Nature biotechnology   (2022)

4. Equilibrated evolution of the mixed auto-/allopolyploid haplotype-resolved genome of the invasive hexaploid Prussian carp.

Nature communications   (2022)

5. Semi-automated assembly of high-quality diploid human reference genomes.  Nature   (2022)

6. The genomic basis of the plant island syndrome in Darwin’s giant daisies.   Nature communications   (2022)

7. Structural variants in the Chinese population and their impact on phenotypes, diseases and population adaptation.  Nature Communications   (2021)

8. Single-molecule long-read sequencing reveals a conserved intact long RNA profile in sperm.  Nature communications   (2021)

9. metaFlye: scalable long-read metagenome assembly using repeat graphs.  Nature Methods   (2020)

10. Accurate circular consensus long-read sequencing improves variant detection and assembly of a human genome.

Nature biotechnology   (2019)



Sage Science是全球领先的全自动核酸电泳片段回收仪的生产厂家,拥有美国技术专利,各个型号产品可以高效完成不同长度范围DNA片段的精准回收,广泛用于二代测序、三代测序以及多种分子生物学相关领域。



环亚生物科技有限公司作为美国Sage Science公司在中国区的独家代理商,自2011年以来将Sage Science的产品线引入国内,一直为国内用户提供专业的全自动核酸片段回收系统的安装测试、应用培训,技术支持与售后维护工作,赢得客户的一致好评与信任。环亚生物科技有限公司将一如既往的支持越来越多的Sage Science用户。
